Whatever the complexity of your

control scheme, the DC590+ has

the interface to suit. As standard

there’s enough analog and

digital I/O for the most complex

applications. Alternatively, add

the relevant ‘technology box’

for immediate access to serial

communications and Fieldbus

networks. The DC590+ has been

designed to fit seamlessly, and

without compromise, into any

control environment.

Analog/Digital Control

• 5 Analog Inputs

(12 bit + sign)

• 3 Analog Outputs

• 9 Digital Inputs (5 configurable)

• 3 Digital Outputs

Serial Communications and

Fieldbus Options

• Profibus-DP • Ei Bisynch

• Canopen • LINK

• Modbus RTU • Devicenet

• RS422/RS485 • Modbus+

• Controlnet • Ethernet

Next Generation Technology

Building upon the highly successful

DC590+ drive used in thousands

of applications world-wide, the

DC590+ Integrator Series 2

drive takes DC motor control to

the next level. With its state-of-

the-art advanced 32-bit control

architecture, the DC590+ drive

delivers highly functional and

flexible control suited to a whole

host of industrial applications.

Providing control for some of

the most demanding motor

control applications, Parker’s DC

experience and technologies are

some of the most advanced in the

industrial marketplace. With drives

from 1 Amp through to 2700 Amps,

Parker can provide the optimum

solution to suit any application.

Typical Applications

• Converting machinery

• Plastics and rubber

processing machinery

• Wire and cable

• Material handling

• Automotive

Function Block Programming

Function Block Programming is

a tremendously flexible control

structure that allows an almost

infinite combination of user

functions to be realized with ease.

Each control function (an input,

output, process PID for example)

is represented as a software block

that can be freely interconnected

to all other blocks to provide any

desired action.

The drive is shipped with the

function blocks pre-configured

as a standard DC drive so you

can operate it straight from the

box without further adjustments.

Alternatively you can create your

own control strategy with DSE

Lite software, often eliminating the

need for an external PLC and its

associated complexity and cost.

Feedback Options

The DC590+ has a range of options

which are compatible with the most

common feedback devices enabling

simple motor control through to

the most sophisticated multi-motor

system. Armature voltage feedback

is standard without the need for any

interface option.

• Analog tach generator - AC or DC

• Encoder - 5, 12, 15, or 24V

• Optical fiber microtach encoder

Interface Options

Designed with connectivity in

mind, the DC590+ has a number

of communications and I/O

options that allow the drive to take

control of the application, or be

integrated into a larger system.

When combined with function

programming, custom functions

and control can be easily created

offering the user a highly flexible

and versatile platform for DC

motor control.

Programming/

Operator Controls

Featuring an intuitive menu

structure, the ergonomically

designed operator panel allows

quick and easy access to all

parameters and functions of

the drive via a bright, easy to

read backlit display and tactile

keypad. Additionally, it provides

local control of start/stop, speed

demand and rotation direction

to greatly assist with machine

commissioning.

• Multi-Language alpha-numeric

display

• Customized parameter values

and legends

• On drive or remote mounting

• Local control of start/stop,

speed and direction

• Quick set-up menu

Connectivity

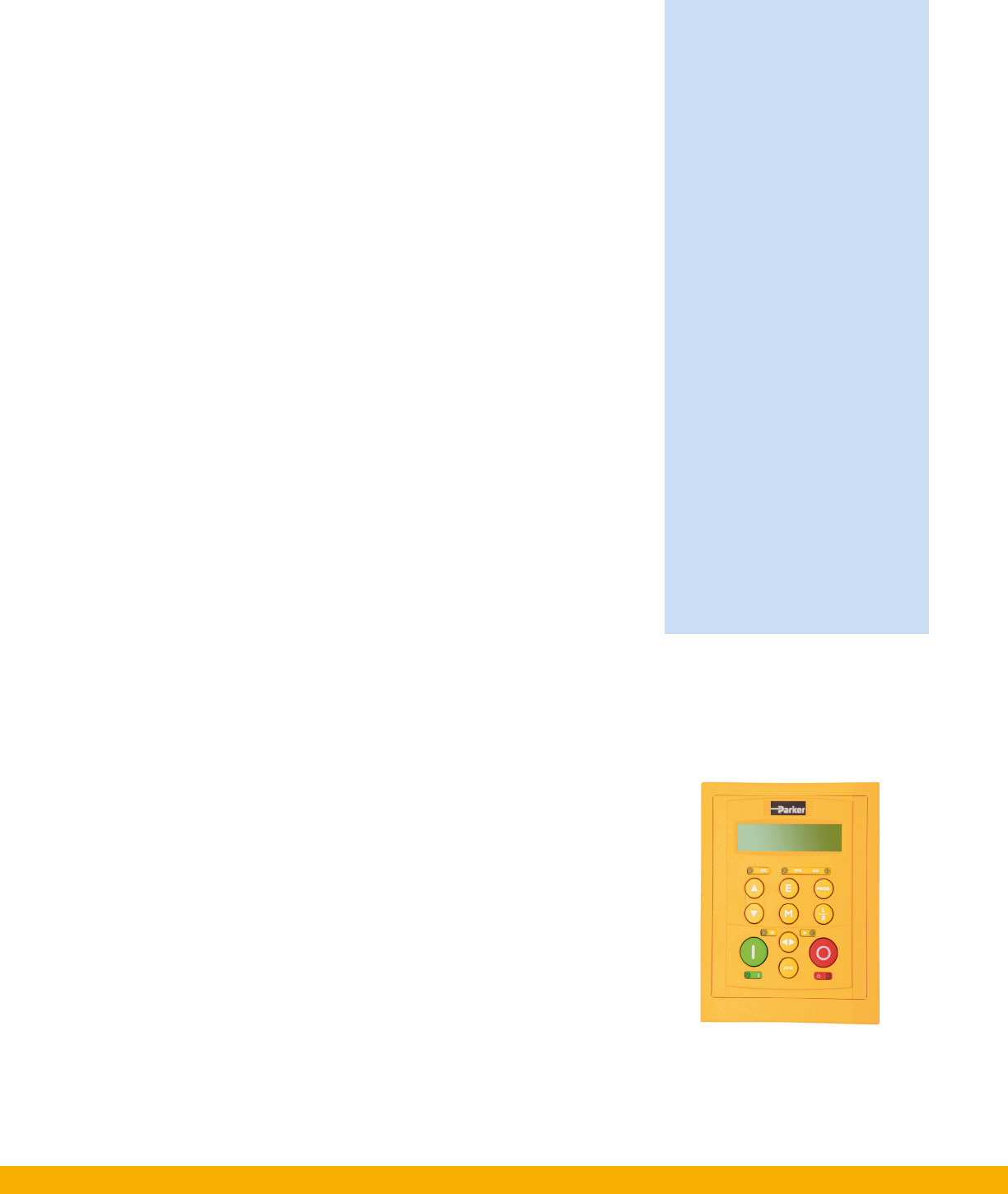

Standard 6901 MMI/Programming Key-

pad is easy to use, and may be remote

mounted. It is compatible with other SSD

Drives models

All DC590+ units are available

as non-regenerative or full

4-Quadrant line regenerative

models

Product web page: www.parker.com/ssdusa/dc590plus
